| project | Specifications / Contents |

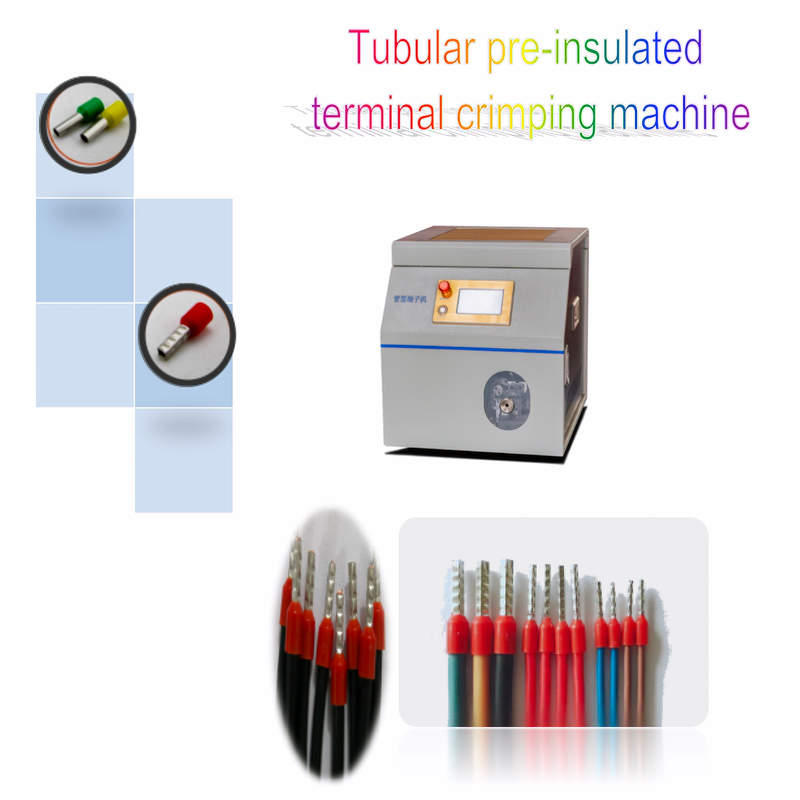

| Name | Tube-type pre-insulated terminal crimping machine |
| Model | WJ- |
| Control method | Human-machine interface, electronic control, and pneumatic control. |
| Operation Mode | Automatically trigger run and foot pedal operation. |
| Wire size specifications | Suitable for BVR lines 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 square. |
| Stripping length | Stripping length range 6 – 17mm. |
| Terminal specifications | The terminal insulation length is within 7.5mm and the conductor length is within 12mm. |
| Crimp shape | Quadrangular crimping (imitation square) |
| Replacement product | Manually replace related parts and adjust the vibration plate, electric memory peeling length and peeling depth. |
| Test items | Terminal presence detection and right side safety door opening detection. |
| power supply | External input power: AC220V / 50Hz (single phase) 10A; internal power: AC220V, DC24V. |
| Gas source | 0.5-0.8Mpa (Please use a stable, clean and dry air source, and the air source should be maintained at no less than 0.5 Mpa）。 |
| Operating temperature | 0～35℃ (Ambient temperature of the machine). |
| Operating humidity | 30～80%HR (non-condensing). |
| Dimensions | W450mm×400mm×H435mm (excluding protrusions). |
| weight | About 47 KG |
