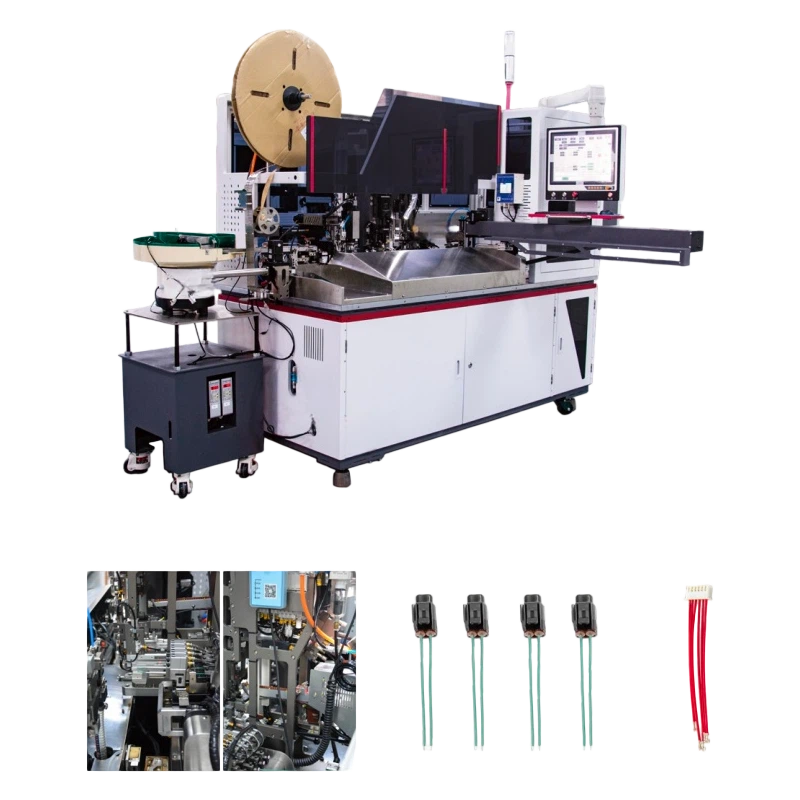

| Equipment Name/Model Number | Single-head waterproof terminal insertion machine |
| major function | The A-end is cut and stripped; the end is either tapped or tin-plated; |
| B-end cutting and stripping; insertion of waterproof bolts; terminal termination; CCD terminal inspection; single-head insertion into rubber housing; suitable for both long and short cable connections. | |
| control method | Industrial computer control – Windows 7 operating system |
| Actuating System | Electric wire unwinding stand – suitable for shaft-mounted or coil-winding lines. |
| B-end terminal CCD visual inspection, pneumatic inspection, cable presence/absence inspection, terminal presence/absence inspection, insertion/withdrawal force inspection for terminals with adhesive housing, dual-head pressure inspection | |
| Terminal Pressure Monitoring System | Dual-Channel Pressure Monitoring (Guanju) |
| Defective product handling | Defective product area sorting |
| Adapter Mold | OTP Standard Horizontal Mold |
| Applicable housing | Suitable for housings with various pin counts and pin pitches. |
| Terminal pressing capability | Ultra-quiet servo terminal machine |
| Technical parameters | |
| Power Supply | 50/60 Hz, 220 V, single-phase |
| Processing Length | 35–600 mm (for lengths exceeding 600 mm, customizable) |
| Electrical wire processing – Material range | AWG#30–AWG#18, suitable for various specifications; available in four colors. |
| Processable terminal spacing | 1.25-3.96mm |
| End-to-end processing for B-end applications with plug housing: when the processing line length is 100 mm, the throughput is 1,400–1,600 pieces per hour; | |
| capacity | End A:Stripping; End B: insert waterproof bolts and attach the terminal housing; when the processing line length is 100 mm, the production rate is 1,000–1,200 pieces per hour; |
| Skinning length | Port A: 1–12.5 mm; Port B: 1–7 mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| air pressure | 0.5-0.7Mpa(5-7KG/m³) |
| External dimensions | L: 2700 mm; W: 2000 mm; H: 2100 mm (excluding the space occupied by the stringing frame) |
| weight | Approximately 750 kg ± 15 kg; the accompanying stringing frame weighs approximately 150 kg. |
| any power-generating or power-driven machine | HuiChuan |
| pneumatic component | SMC Yadeke |
| vision system | own brand |
| module | THK & HHK Precision Bidirectional Drive Modules, High-Precision Linear Motor |
| lead screw | TBI |
| lead rail | Shangyin/THK Guide Rail |
| inductor | Panasonic/Huikē |
| leather belt | Beidi/Yiheda |
| bearing | NSK/HCH |
| razor blade | Imported alloy material, precision wire-cut machining, and meticulous grinding – ensuring long-lasting durability. |
