Model codes
SV1.25-2.5, SV1.25-3, SV1.25-3.5, SV1.25-4, SV1.25-5, SV1.25-6
SV2-2.5, SV2-3, SV2-3.5, SV2-4, SV2-5, SV2-6
SV3.5-3, SV3.5-4, SV3.5-5, SV3.5-6
SV5.5-4, SV5.5-5, SV5.5-6, SV5.5-8
SNB1.25-2.5, SNB1.25-3, SNB1.25-3.5, SNB1.25-4
SNB2-3, SNB2-4, SNB2-5, SNB2-6
SNB3.5-4, SNB3.5-5, SNB3.5-6
SNB5.5-4, SNB5.5-5, SNB5.5-6, SNB5.5-8

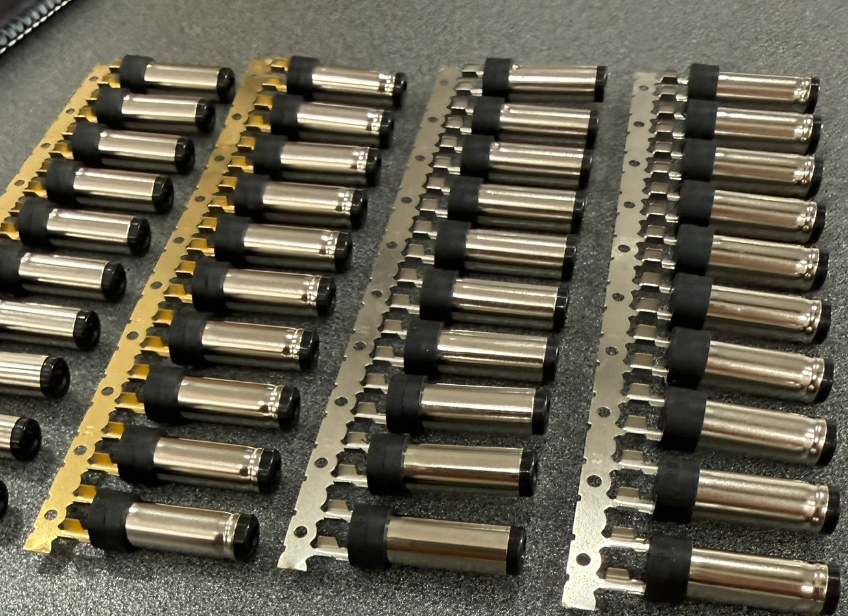

5521, 5525, 5520, 4017, 3513
Tab / Fork dimension specs
2.8×1.8mm
2.8×1.9mm
3.5×2.0mm
4.0×2.0mm
4.2×2.0mm
5.5×2.1mm
5.5×2.5mm
6.2×2.3mm
6.3×2.4mm
Wire gauge range (AWG)
22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG, 10AWG
Other key specs
- Material: Pure copper / tin-plated / nickel-plated copper
- Type: Non-insulated, vinyl insulated, nylon insulated, DC tuning fork type
- Rated voltage: 600V, DC 12V/24V
- Wire cross-section: 0.5mm², 0.75mm², 1.25mm², 2.0mm², 3.5mm², 5.5mm²
- Application: Wire harness, control cabinet, electrical panel, machinery wiring, DC power connector
